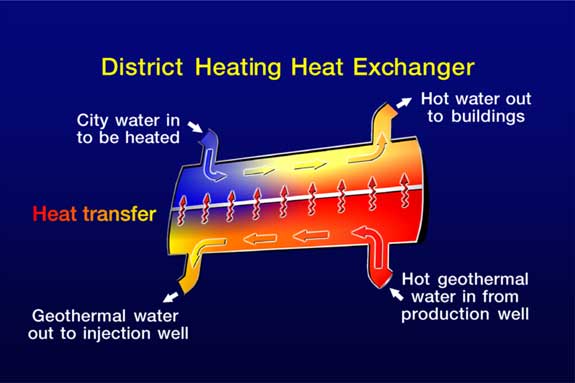

District Htg. Heat Exchanger

The geothermal water never mixes with the city water. Once its heat is transferred to the city water, the geothermal water is injected back into the reservoir to be reheated and recycled.
