Plate Type Heat Exchanger

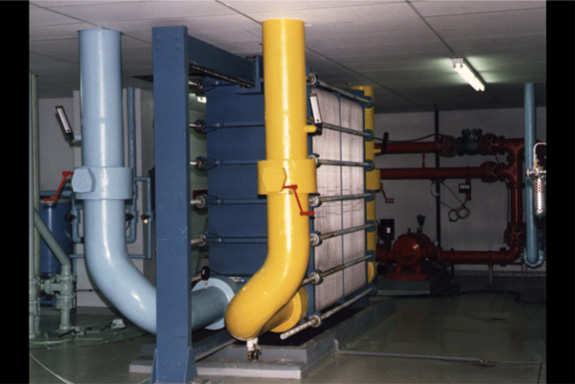

This is a "plate type" heat exchanger which passes hot geothermal water past many layers of metal plates, transferring the heat to other water passing through the other side of each plate.

Slide 92 of 122, 2000 Geothermal Education Office
