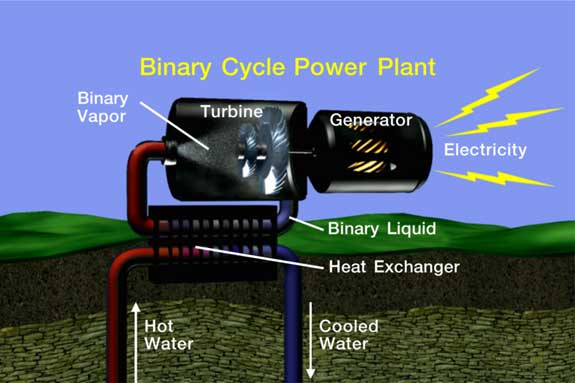

Binary Cycle Power Plant

In a binary cycle power plant (binary means two), the heat from geothermal water is used to vaporize a "working fluid" in separate adjacent pipes. The vapor, like steam, powers the turbine generator.
