Binary Plant Heat Exchanger

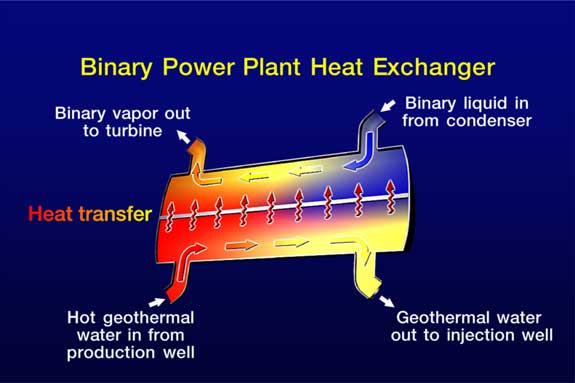

In the heat exchanger, heat is transferred from the geothermal water to a second liquid. The geothermal water is never exposed to the air and is injected back into the periphery of the reservoir.

Slide 60 of 122, © 2000 Geothermal Education Office
