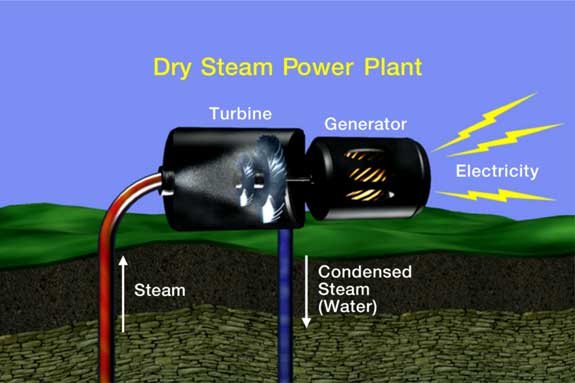

Dry Steam Power Plant

In dry steam power plants, the steam (and no water) shoots up the wells and is passed through a rock catcher (not shown) and then directly into the turbine. Dry steam fields are rare.

Slide 49 of 122, 2000 Geothermal Education Office
