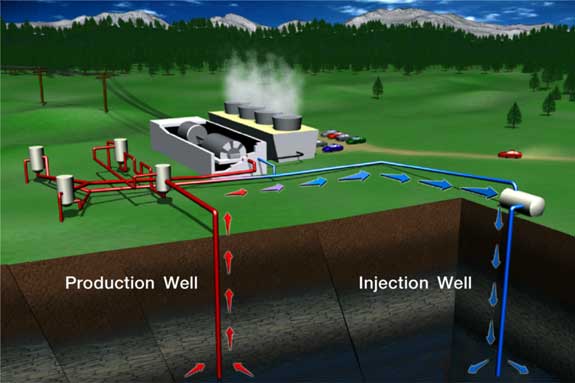

Geothermal Power Plant

Natural steam from the production wells power the turbine generator. The steam is condensed by evaporation in the cooling tower and pumped down an injection well to sustain production.

Slide 37 of 122, © 2000 Geothermal Education Office
