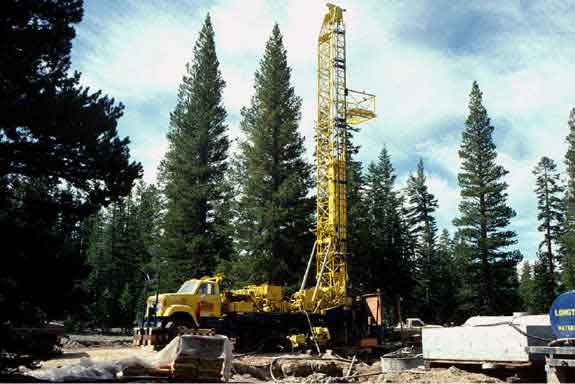

Temp. Gradient Drill Rig

First, a small- diameter "temperature gradient hole" is drilled (some only 200' deep, some over 4000 feet deep) with a truck-mounted rig to determine the temperatures and underground rock types.

Slide 26 of 122, 2000 Geothermal Education Office
